Caravelle Paint Project

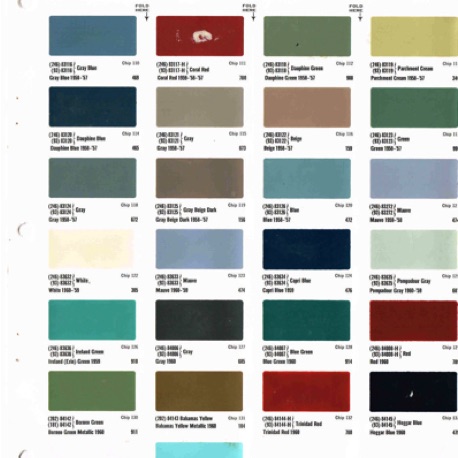

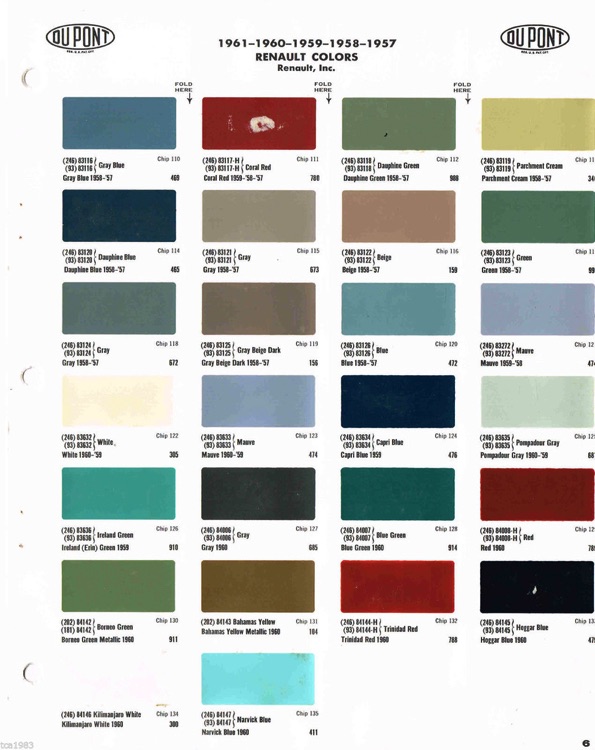

I located a 1960's paint color code chart and selected Narvik Bleu

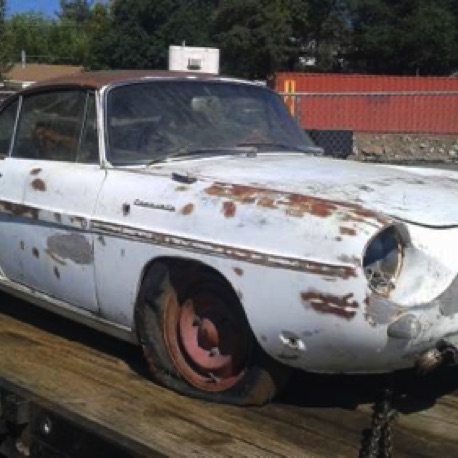

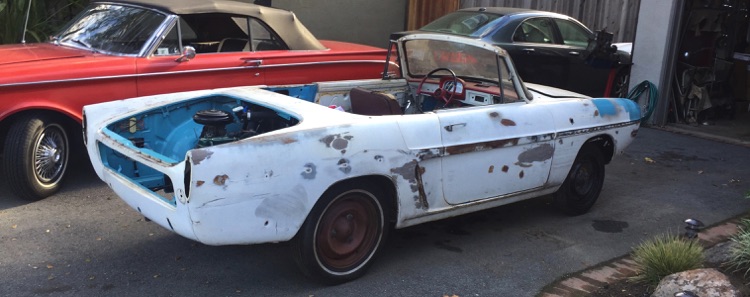

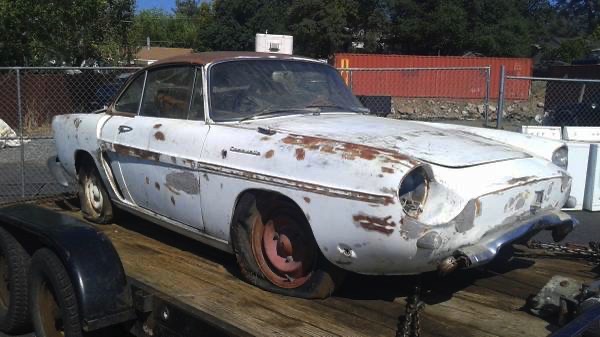

On the trailer headed to its new home

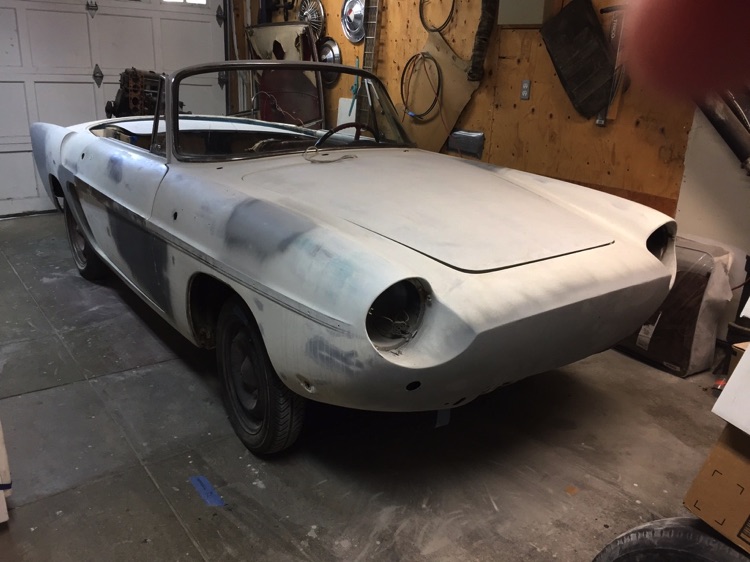

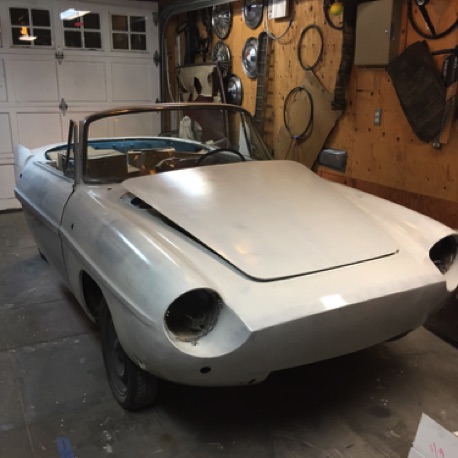

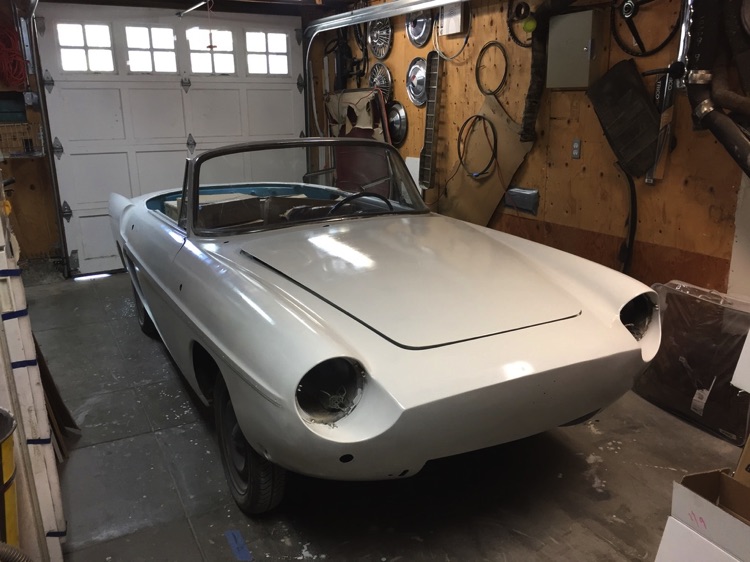

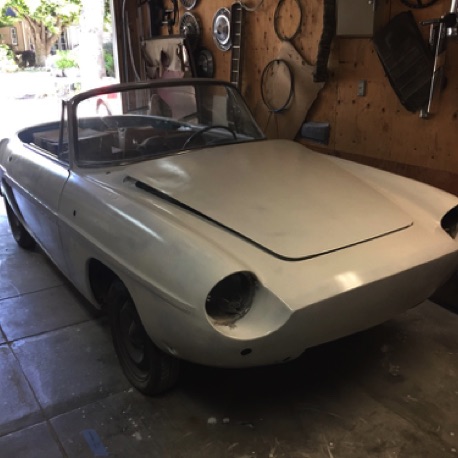

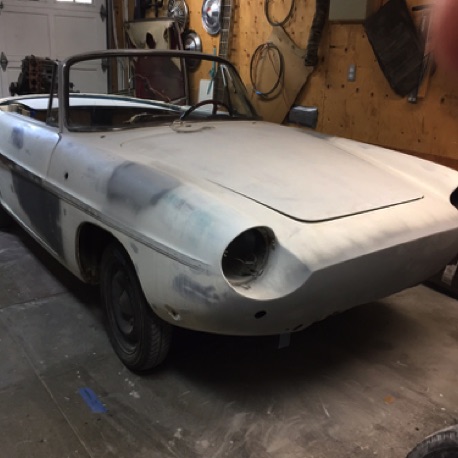

White and grey primer after bodywork

1st coat coat of primer

2nd coat of primer

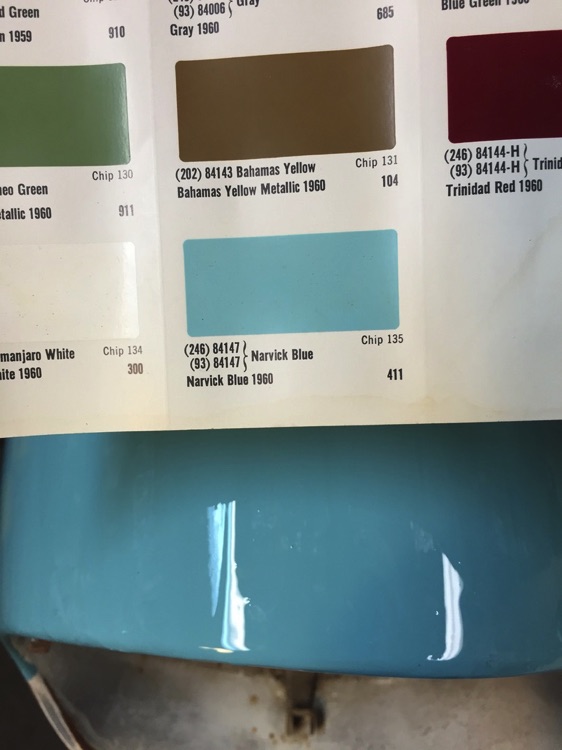

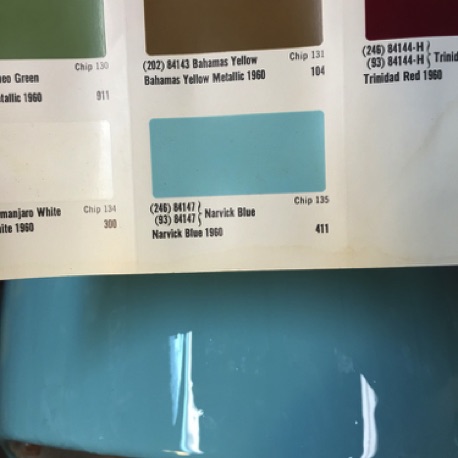

The best color match

Combinations of paint were mixed until one matched the paint chip Narvik Bleu

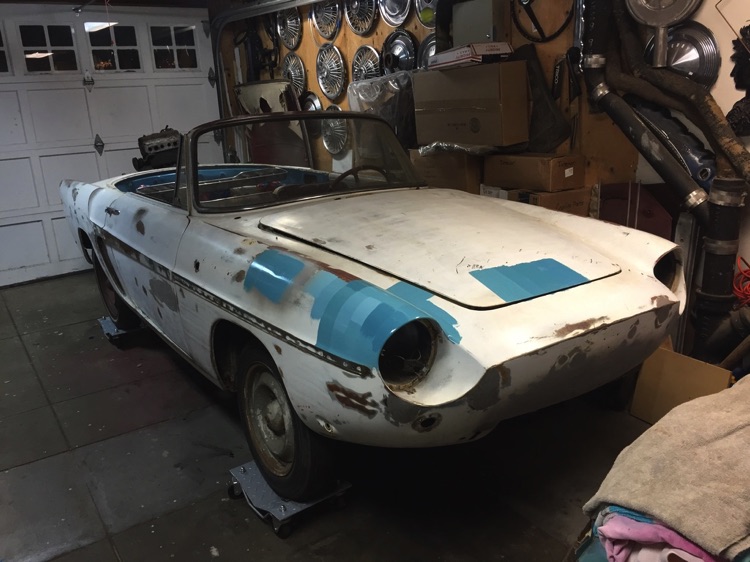

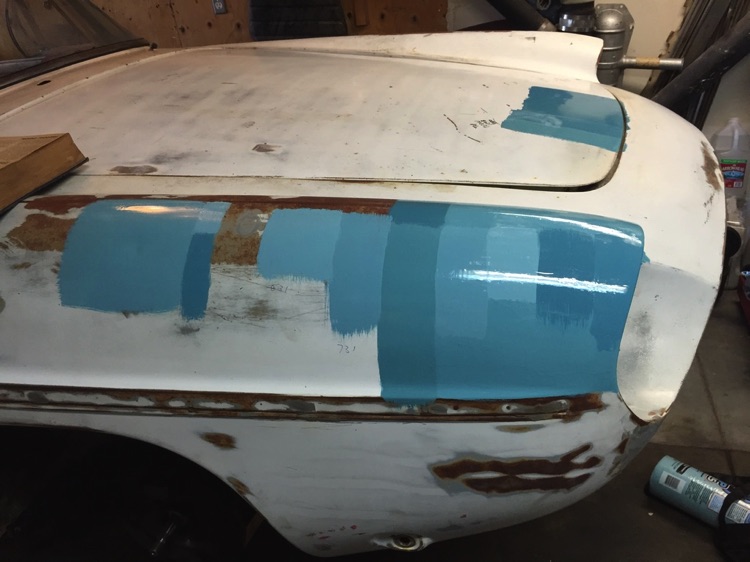

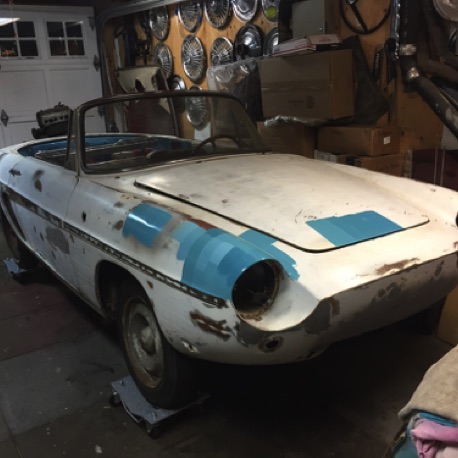

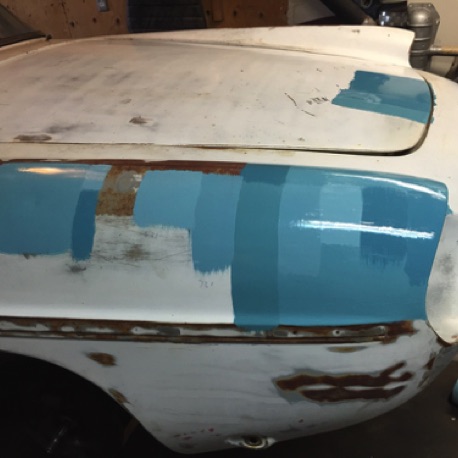

Paint test swatches

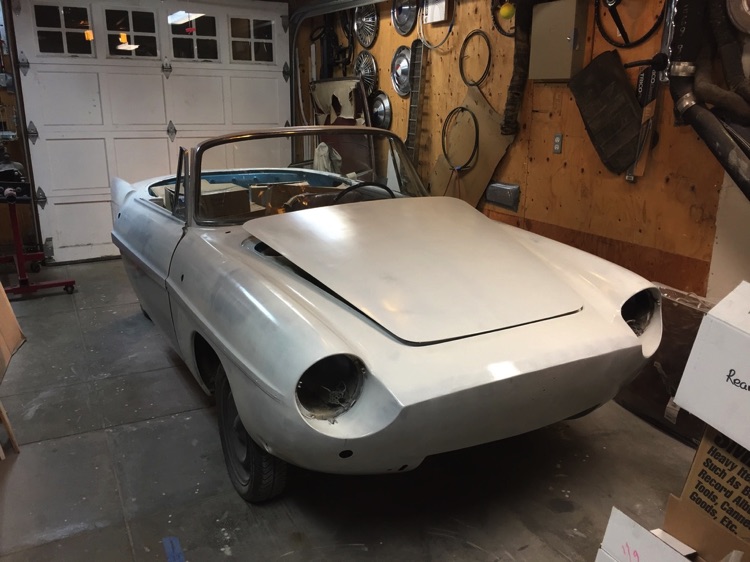

3rd coat of primer

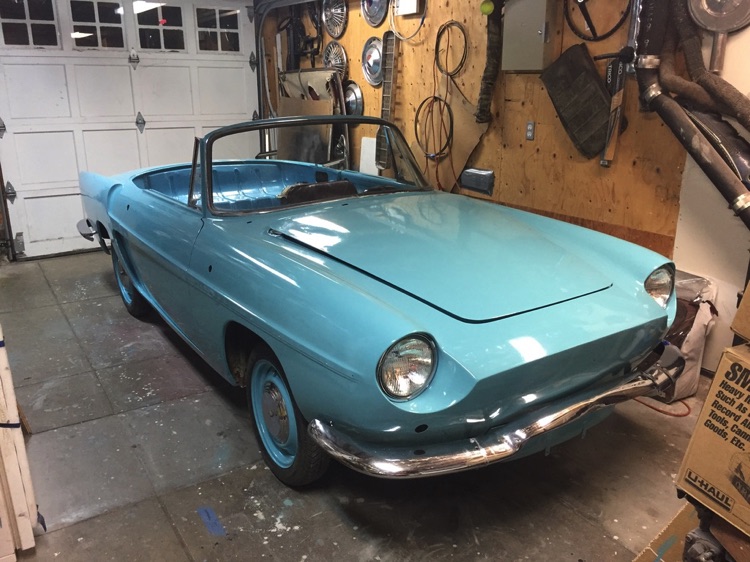

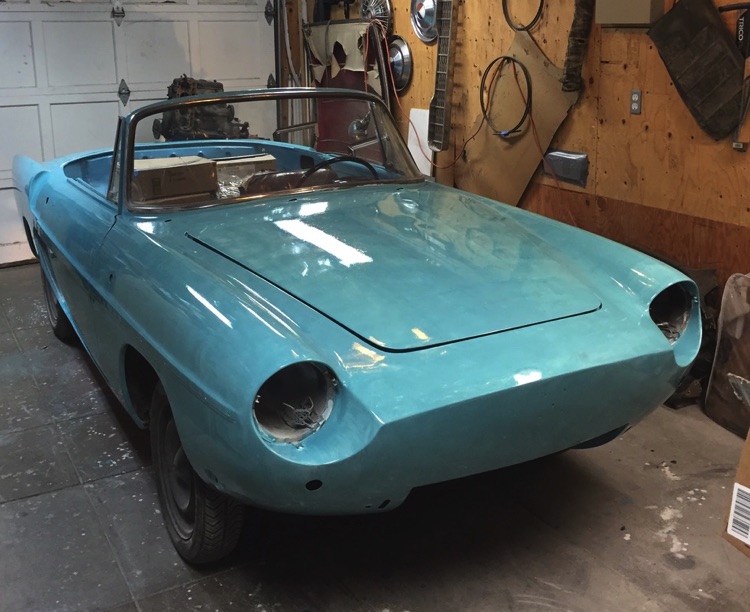

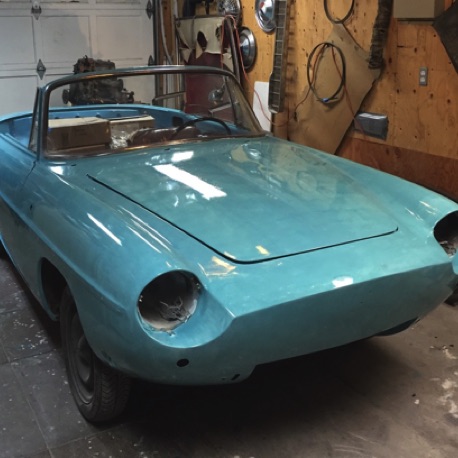

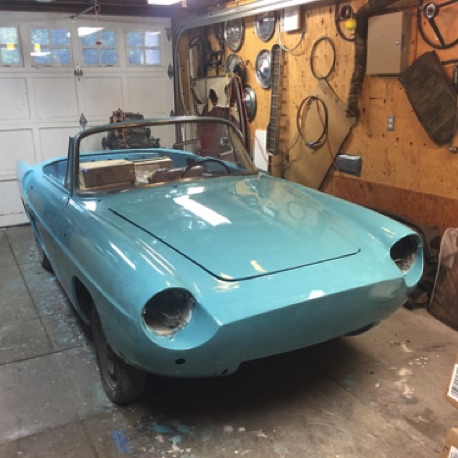

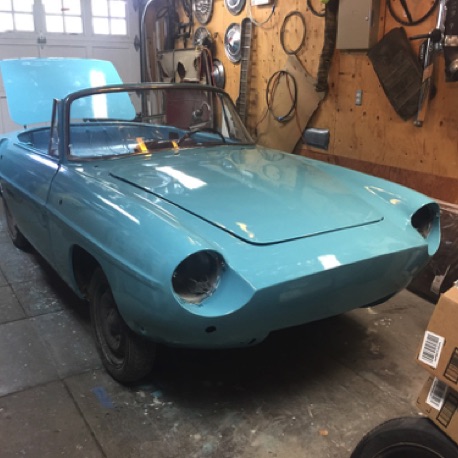

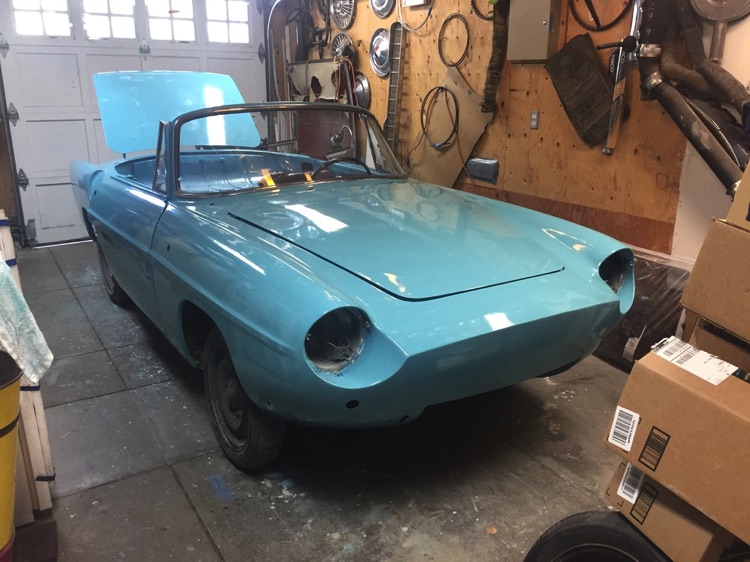

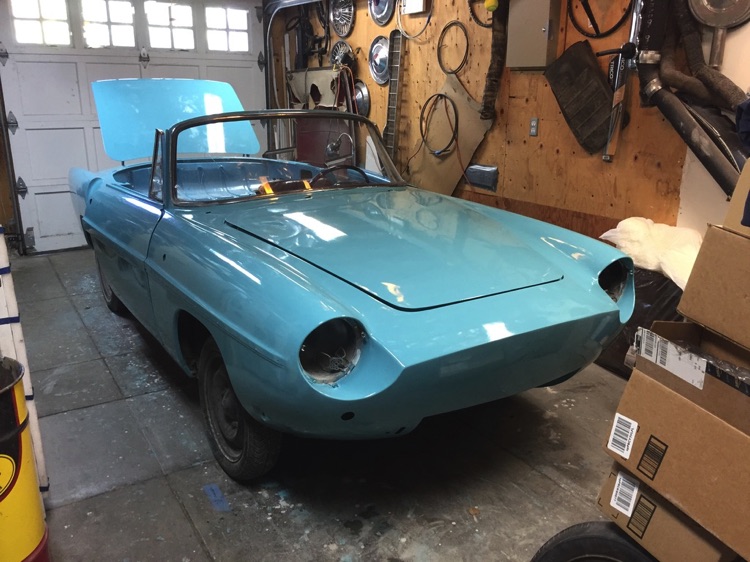

1st coat of Narvik Bleu

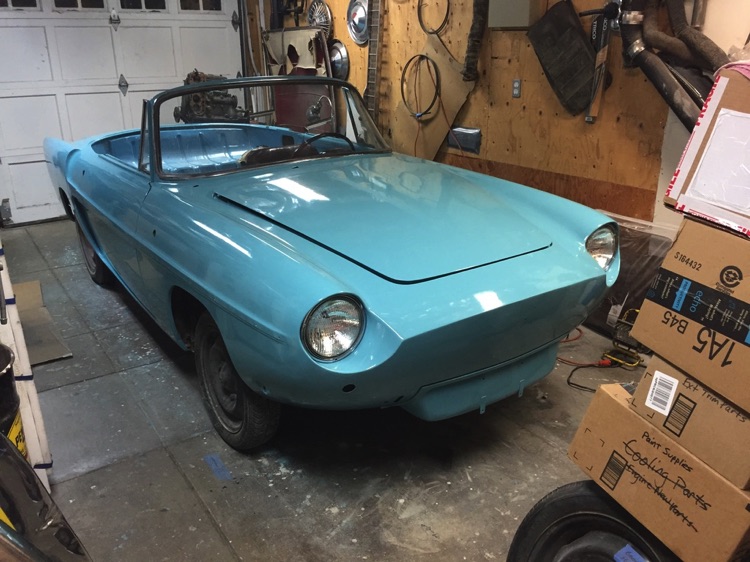

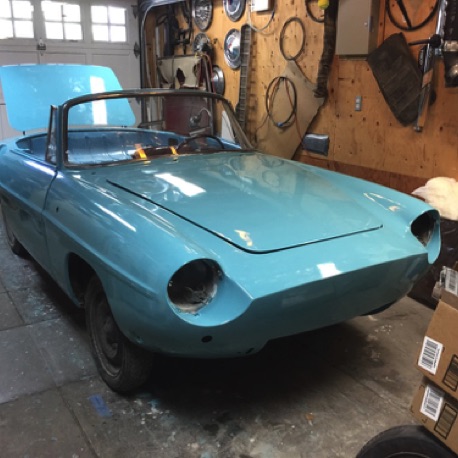

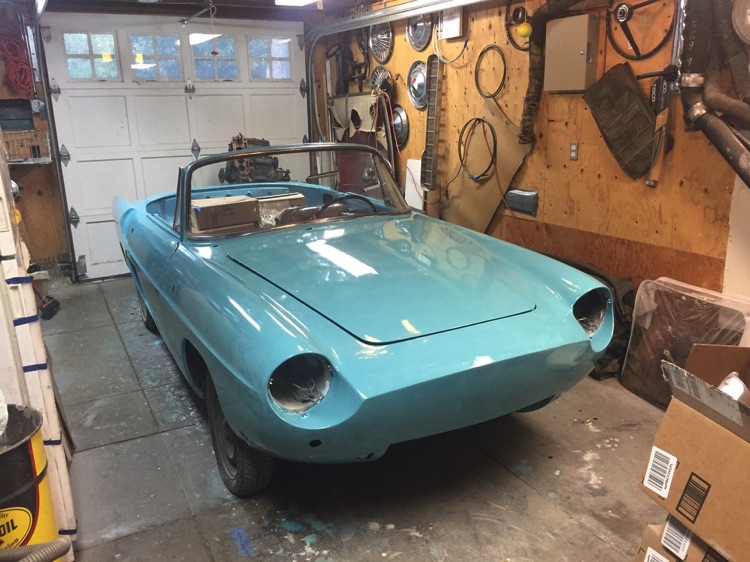

2nd coat of Narvik Bleu after wetsanding with 400 grit paper

3rd coat of Narvik Bleu after wetsanding with 600 grit paper

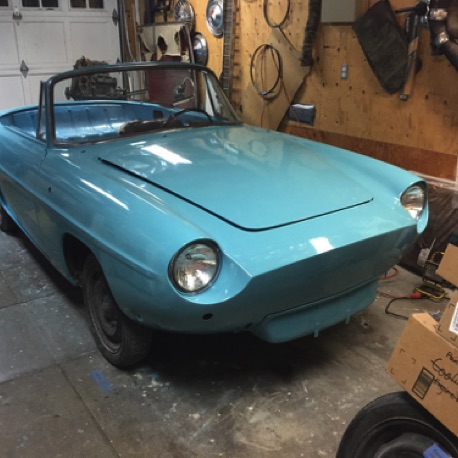

4th coat of Narvik Bleu after wetsanding with 800 grit paper

5th coat of Narvik Bleu after wetsanding with 1000 grit paper

6th coat of Narvik Bleu after wetsanding with 1500 grit paper

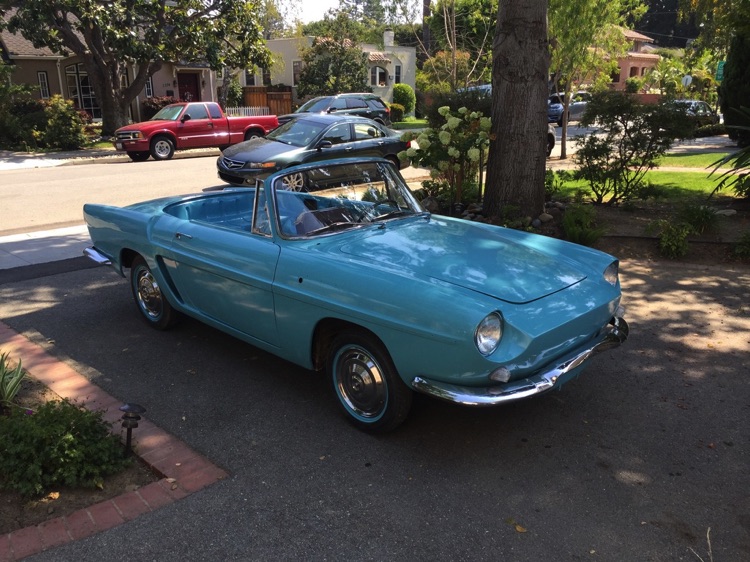

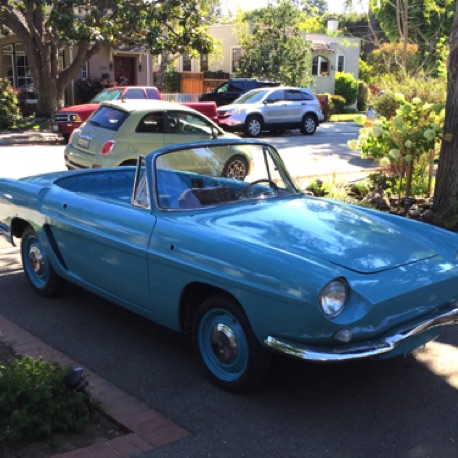

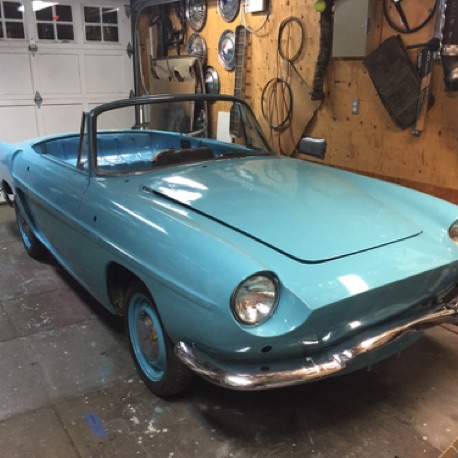

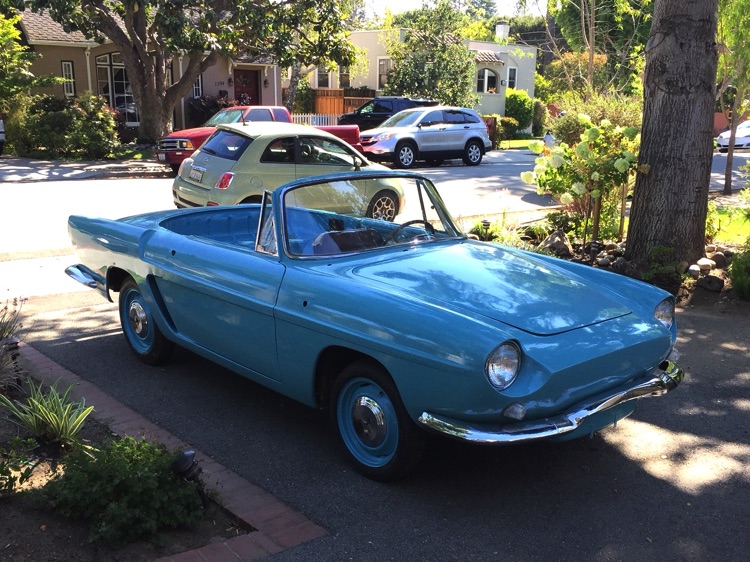

In the driveway after polishing

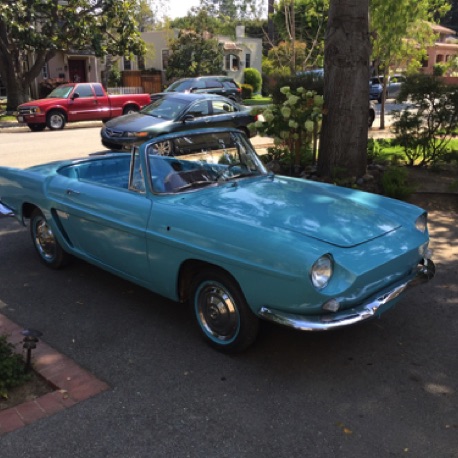

In the driveway with larger hubcaps

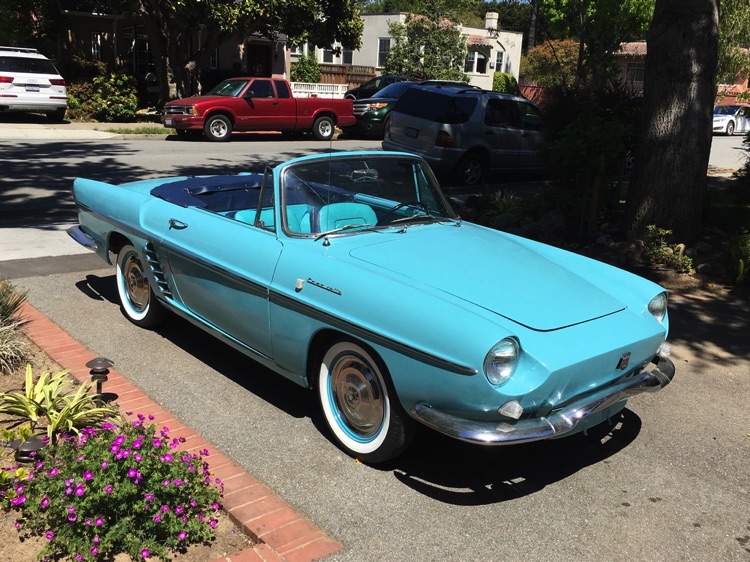

Trim pieces mounted

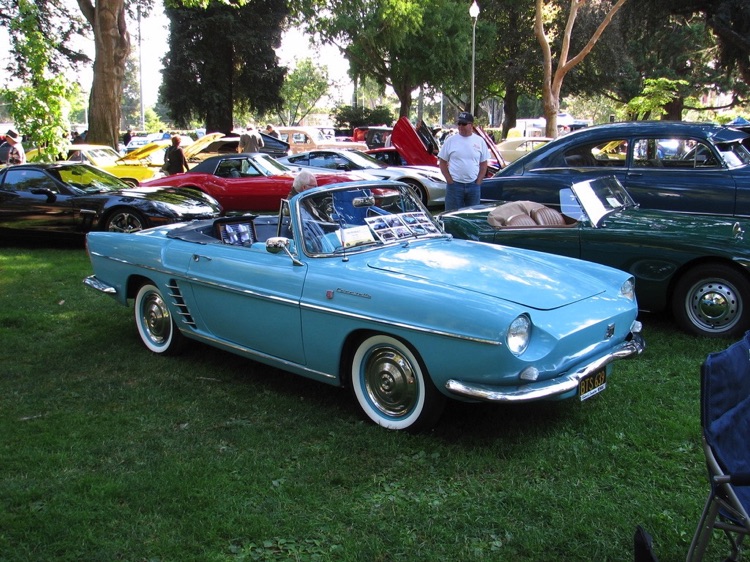

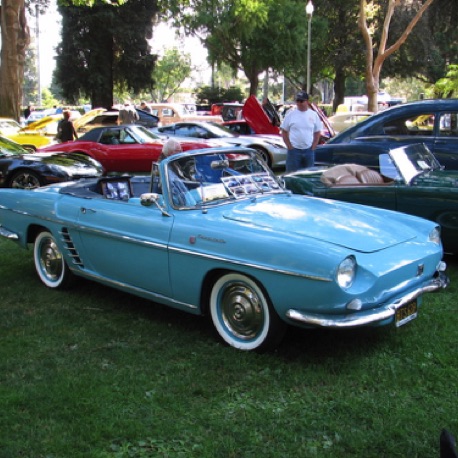

1st Car show

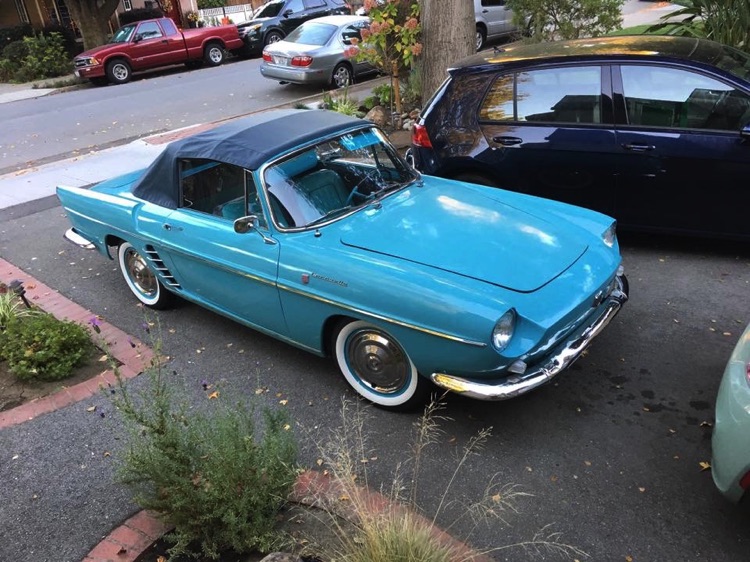

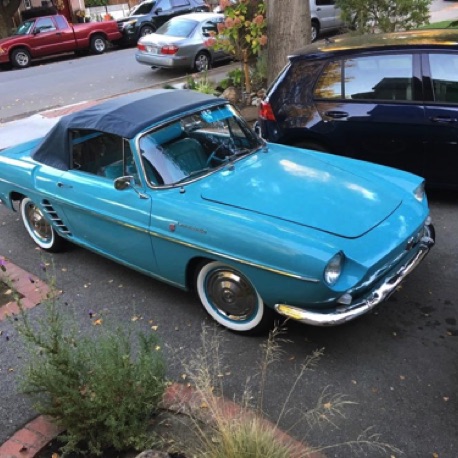

Soft top installed

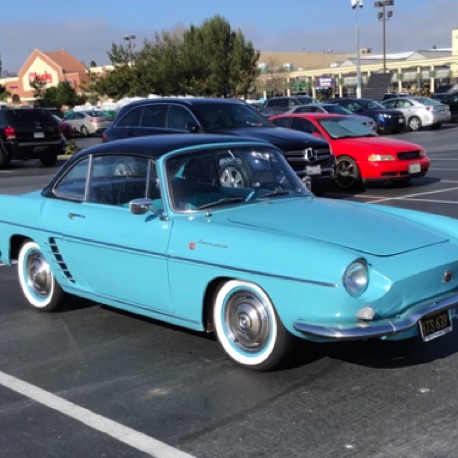

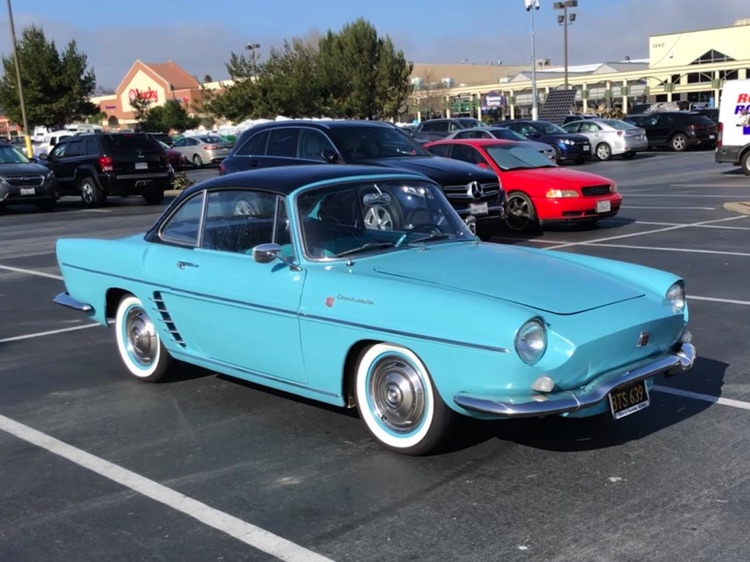

Hard top installed

The car was originally white with a red interior and red hard top. I researched the original 1960 colors and decided on Narvik Bleu exterior with matching interior, with navy blue top and trim. I located an old paint card and was able to mix up my own combination of paint using 5 parts Rustoleum Topside White, 2 parts Rustoleum Topside Blue, and 1 part Rustoleum Topside Green. I thinned this with 30% mineral spirits and applied several coats using a 6 inch foam roller and lots of wetsanding between coats. The navy trim and hard top was 3 parts Rustoleum Topside Blue and 1 part Rustoleum Gloss Black. Not bad for a rolled-on paint job!
